$6,900.00

An advanced automated powder applicator and curing oven that revolutionizes DTF printing. Designed with innovative vertical space-saving technology, the SLIMSHAKER™ offers an efficient and high-quality process for your film roll projects. With a compact footprint of just 12.7 square feet, compared to the traditional 31.5 square feet required by 24" shakers, this machine is ideal for businesses looking to optimize their workspace.

The vertical powder applicator and curing oven seamlessly integrates with any roll-to-roll direct-to-film printer, enhancing your production line with in-line functionality. It ensures uniform and controlled powder application to DTF film rolls, resulting in consistent and vivid transfers for your projects. Additionally, the machine cures the DTF film rolls, streamlining your workflow and saving time.

Upgrade your operations with the SLIMSHAKER™ for an efficient, space-saving, and versatile solution that delivers outstanding performance and quality in your roll-to-roll direct-to-film printing workflow.

NOTE: A matching DTF roll-fed printer is required. This machine does not print, it cures the adhesive applied to the printed sheet.

WARNING: Work in a well ventilated area and use protective equipment when working with DTF products and processes. It is highly recommended to use a fume extractor to handle the fumes caused by TPU adhesive powder curing. Bodily protection, including the use of PPE equipment such as a full body covering, a respirator/N95 mask, goggles and gloves are recommended to protect against TPU adhesive powder (prior to curing) that may become airborne due to handling. Inhalation of TPU adhesive powder or fumes may be hazardous to your health. The use of DTF equipment, chemicals, powders, inks and all accessories are at the sole risk of the user. DTF equipment is intended for use in a commercial environment. UNINET™ does not recommend the use of DTF equipment in a residential, or in-home setting. DTF inks and film require a good humidity environment - over 50% humidity is highly recommended to minimize risk of ink clogs and film buckling.

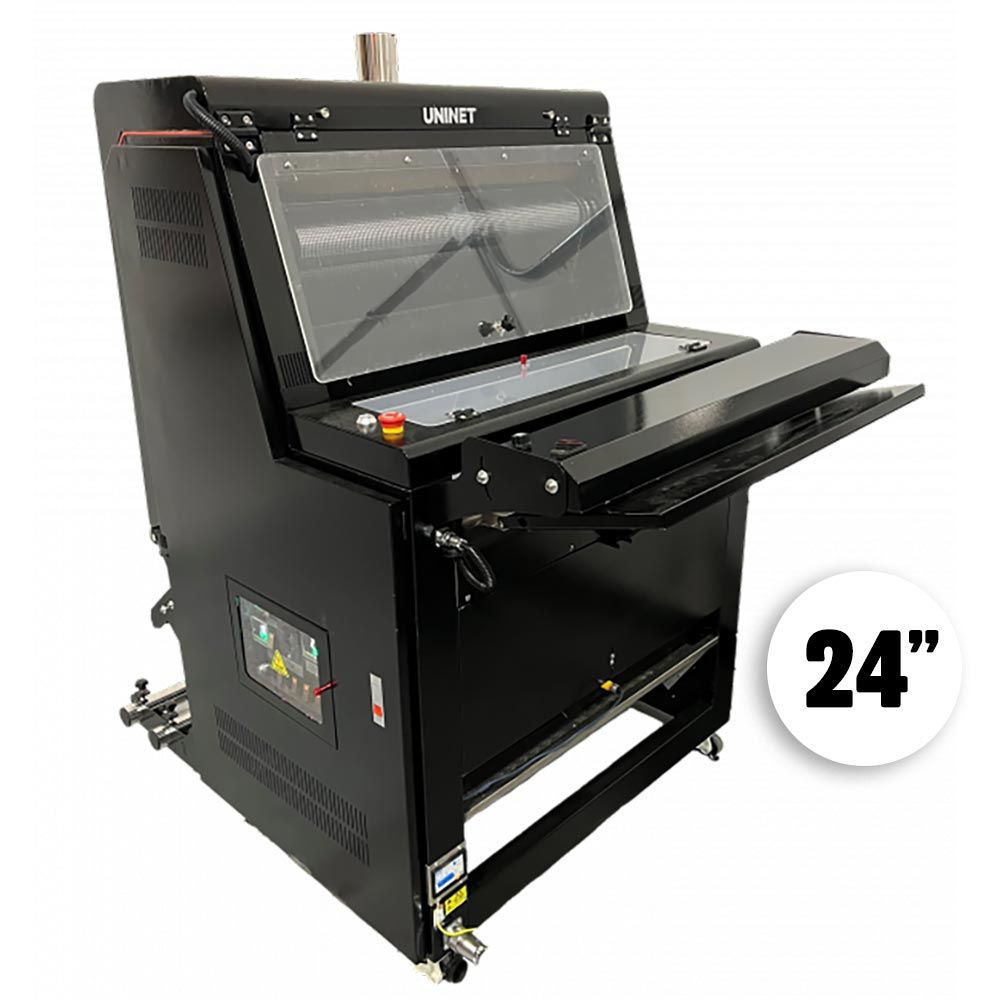

UNINET DTF SLIMSHAKER VERTICAL POWDER APPLICATION & OVEN-24"

Features
More Information
SKU DTFIC-SLSH-24
DTF Maximum Media Width 24"
Voltage 110
Compatibility

The SLIMSHAKER™ is compatible with roll capable DTF printers, including the UNINET™ series roll printers, and can also be combined with Oric, Audley, HJD, Titan, Coldesi, All American/DTF Station, Mutoh STS, Mimaki and Roland DTF printers and other DTF roll printers. It is also compatible with all DTF PET Film Rolls (up to 17" in width and including popular sizes such as 13") and with powders and films from industry-leading manufacturers.

Features
  • Vertical Space Saving Design: Offering the lowest footprint of any shaker, and with the same curing area as a long horizontal shaker. Fits through a standard U.S 36" door frame (unassembled).
  • Automatic Powder Application: Pour powder into the powdering section, and it will be applied evenly to your prints with variable adjustable speed controls.
  • Automatic Powder Removal & Powder Collect/Re-Use: Excess powder will be shaken off the film, and automatically recirculated.
  • Dual Heat Zones: Offers fine heat control and better temperature regulation than other shakers.
  • Vacuum Belt Drive: minimizes friction and static build up that are the source of many user encumbrances with other shakers.
  • Advanced Take-Up System: Additional tension bar to roll up the finished DTF™ films better.
  • Easy-Attach Fume Exhaust Port: Easily attach any fume extractor to the existing fume-exhaust port (fume extractor not included, sold separately).
Specifications
  • Weight: 230kg/507lbs
  • Dimensions Uncrated: 59" x 40" x 65" / 618 lbs
  • Dimensions Crated: 51" x 43" x 70" / 705 lbs
  • Rated Voltage/Amps: 220V/40A
  • 35"W x 60"H x 39"L (unassembled)
  • Fully assembled Footprint : 47"W x 60"H x 39"L
  • 9 Gauge Circuit Wiring
  • Requires a grounded, three prong plug as a safety feature. This plug only fits into a grounded outlet. If the plug does not fit, the outlet may be an older, non-grounded type. Contact and electrician to have the outlet replaced. Do not use an adapter to defeat the grounding.
Resources
